Editor Iteration Profiler (EIP) Before diving into the details, I will start by defining what an iteration is. An iteration is a process that contains instructions that are repeated until a condition is met. Unity relies on different types of iterations.
The Editor Iteration Profiler monitors iterations that are related to the scripting side of Unity, specifically entering and exiting playmode, assembly compilation, and assembly reload.
The tool is an attempt to empower you, our users, to understand and help you solve the common question “Why does it take so long to compile my scripts/enter playmode?”. EIP accomplishes this by monitoring profiler frames and saving them in a window where you can more easily navigate through the data the profiler produces. Additionally, the data persists for the whole lifetime of the Editor (or until it’s cleared), as opposed to the Profiler, which has a limit to the number of previously stored frames.
Disclaimer: This tool is still under development and anything could change on the API side.
High-level features summary
Monitor and capture profiling data from assembly reload, assembly compilation, and enter playmode.
Export captured data or Profiler data to a number of formats such as HTML, JSON (for chrome://tracing, which is a fast flame-graph style data visualizer), CSV, and Plaintext.
Export to a special type of HTML (HTML Performance Report), which attempts to minimize the number of clicks needed to get to the important areas of the profiled data, as well as aggregate possible areas of interest which could be optimized (e.g. OnEnable calls)
How to use Compatible with 2019.3 and later. It might work with earlier versions, but it is not tested.
Place the contents in a folder in your Project’s Packages folder
Open up the project and open the window fromWindows → Analysis → Editor Iteration Profiler → Show Window
You should see a window very similar to this
The basics To enable the tool, you just need to click the Enable button in the window. The window doesn’t need to be open afterward: it will run in the background.
After an iteration happens, it will show up in the window as follows:
UI Please note that the UI might change/have changed slightly, however, the functionality should be the same.
Enable - enables the Profiler and sets it to run in Editor mode.
Flattening - attempts to reduce the number of clicks needed to get to the place that is of interest. Works by ‘collapsing’ levels which contain multiple parented items with 1 child. Useful for GUI code and Deep Profiling.
User Code - is an attempt to filter out engine code and only show code the User might be interested in.
Clear - removes recorded events and events which the EIP is looking for.
Collapse All - recursively collapses every item.
Print to Console - logs the captured data into plaintext into the console/log file.
Export… - dropdown to export captured data in various formats.
Export Profiler Data… - dropdown to choose between exporting the selected frame in the Profiler Window or exporting multiple frames, frame by frame, between 2 ranges. It will automatically export the data to a selected folder.
Search Bar - works as you would expect. Selecting an item and either pressing the F key or clearing the search will automatically expand the tree view to that item.
Exporters
After you have captured some data, you might want to export it. You can do this by clicking the Export… dropdown and choosing a format.
Hereyou can get the samples exported above for you to test out.
The Formats
Opening the HTML, you will see something similar to this:
It mostly contains the same data as the EIP Window, with the addition of the percentages. Items in square brackets “[ ]” are leaf items without any children.
The JSON format is meant to be used within Google Chrome'schrome://tracing, which works on chromium-based browsers like Google Chrome, Microsoft Edge Chromium (edge://tracing - chrome://tracing will be replaced by it if typed), Opera, etc.. It is a fast, lightweight and Editor-agnostic way to view the captured data in the flame-graph style.In this gif, we show how to load and use the file intochrome://tracing.
CSV can be used to load the data into other programs, for example. It is pretty difficult for humans to make sense of it. Also, please be aware of the ‘header’ which contains environment information in case you plan to do further processing.
Exporting Plaintext is the same as the one it is printed in the console with the “Print to Console” button. Using this, you have the option to isolate the data and not have other information which is in the Editor.log file.
TheHTML Performance Reportis based on the same structure as the regular HTML report, however, functionally it is different. The purpose of it is to distill the information into something humans would more easily understand. It basically does this by reducing the number of levels you have to click through to get to the areas of interest, where code diverges more.
The items in curly brackets “{ }” represent items that have more children, which were hidden due to the parents being under the minimum set threshold (currently a hard-coded value of 1%).
The colored items represent ‘buckets’ of similar data, which is grouped in one place for convenience. The total time of these items is not added to the original time, it’s only there to give an estimate for that iteration.
In order to get the most accurate data (especially with DeepProfile enabled),close as many Editor Windows as possible, including the EIP Window itself (it will keep working even when closed if it's Enabled).The reason is that rebuilding the Tree Hierarchy view and repainting the GUI takes time, and it will "pollute" the data you might be looking for. The more data, the more it will be polluted (Deep Profile will naturally lead to this faster). This has been mostly mitigated in0.1.2-preview(cost is still there, just delayed so it doesn't pollute the data).
When clicking the Profiler Window after clicking Enable in the EIP Window, the EIP's state will be overridden to whatever the original setting in the Profiler was
May cause unity to crash when closing it while the EIP is Enabled
Feedback In terms of feedback, we're especially looking for:
Are there any useful use-cases not covered?
Are there any workflows that are unclear or missing?
Is there anything that is unclear or that you don’t understand?
Are there any issues or unclear parts in the documentation or this post?
Troubleshooting If you encounter any problems, the simplest fix is usually to use the Clear button for the window. Another option you can try is throughWindow → Analysis → Editor Iteration Profiler → Purge Caches.

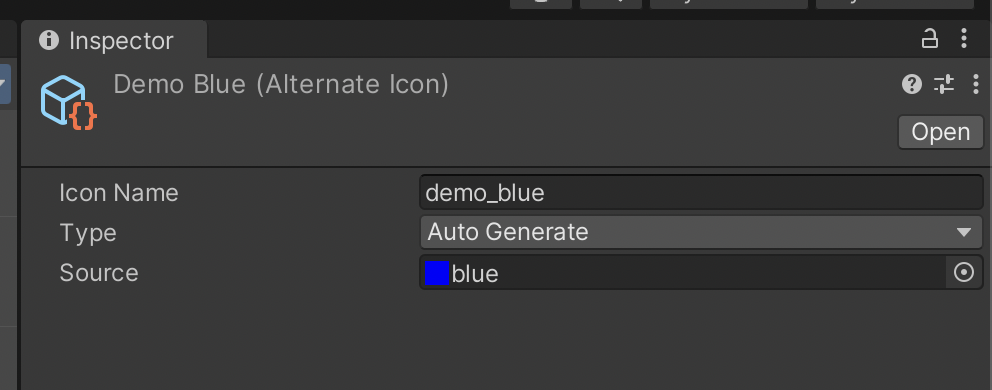

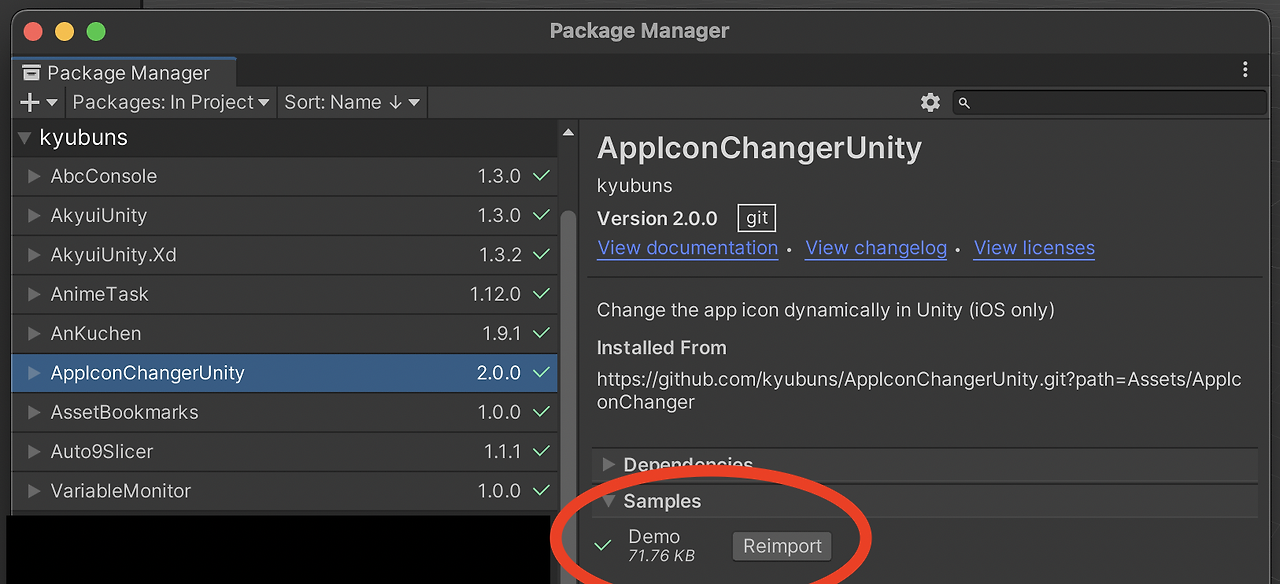

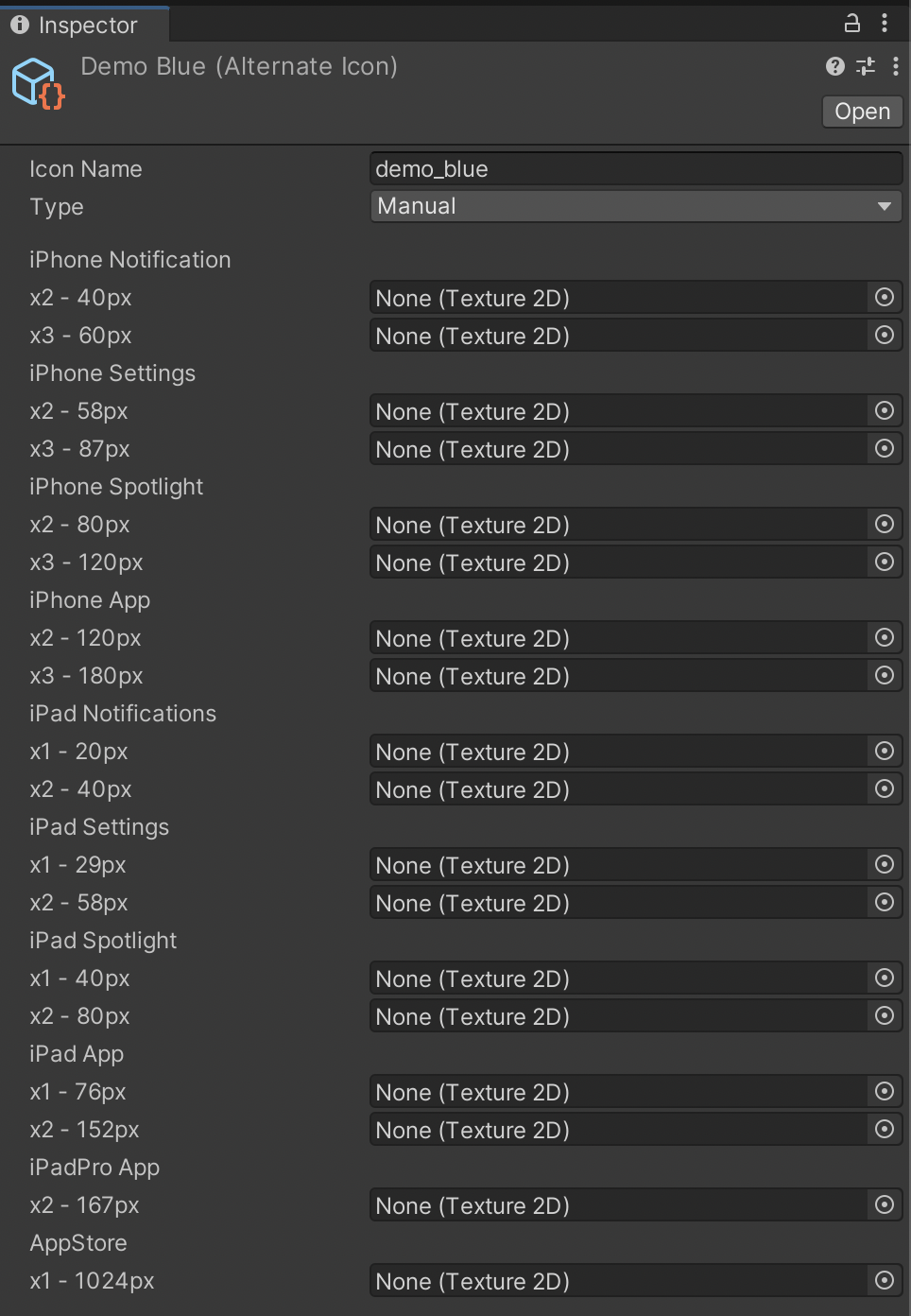

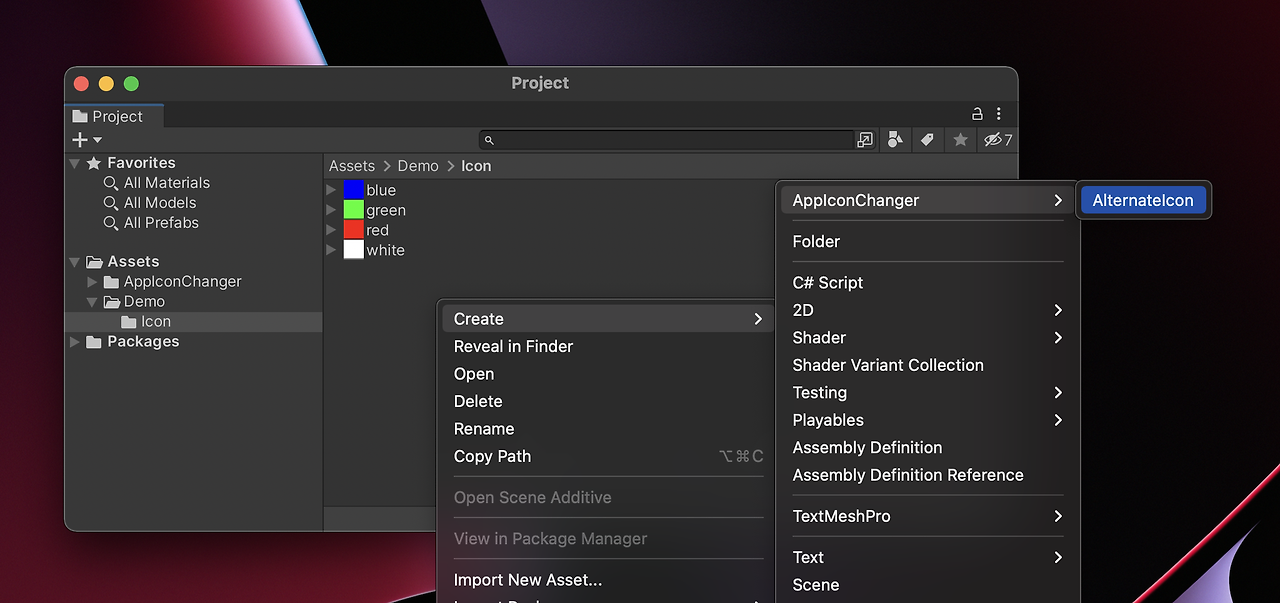

When the Type of `AlternateIcon` is set to Auto Generate, the icon will be automatically resized at build time, so there is nothing to worry about. （The maximum size is 1024px.) If you want to control it in detail, you can change the Type to Manual.
