Here are two small tricks that can help if you’re making an isometric 2D game in Unity. Ok, so notactuallyisometric, but that’s the term we’re used to in videogames, so we’ll go with it. These are quite basic and if you’re working on such a game you’ve probably already tackled them your own way. This is our take on it, hopefully it’s useful to someone.
Sprite Ordering
Normally in a 2D game there is no concept of depth, so if you simply place the sprites in the world, you’ll most likely have objects appearing in the wrong order than what you’d expect in an isometric game.
Thankfully Unity exposesSorting LayerandOrder In Layerproperties for Renderers. A quick fix is to set the value ofOrder in Layerto depend on the Y position of the object.
[ExecuteInEditMode]
[RequireComponent(typeof(Renderer))]
public class DepthSortByY : MonoBehaviour
{
private const int IsometricRangePerYUnit = 100;
void Update()
{
Renderer renderer = GetComponent();
renderer.sortingOrder = -(int)(transform.position.y * IsometricRangePerYUnit);
}
}
This solves the problem for the simplest case, when we assume all objects rest on the ground.
Let’s assume we want to have an object that is above the ground in the world, like placing a bird house on that tree. Just trying to place it in the world will treat the pivot of the object as being at ground level, with no way to both place it at a proper height and sort it correctly.
There are several options for this. Just to get it out of the system, the first option is to add empty space to the texture below the bird house to make sure the pivot is at ground level (in Unity, the pivot can’t be outside of the sprite). This is baaaad! This is wasting texture space, and all instances of that object will need to be at the same height in the game. There are other, less insane, options.
One is having aheightproperty in theDepthSortByYbehavior and subtract it fromtransform.position.ywhen computing the sorting order. Another solution (which we went with) is allowing theDepthSortByYbehavior to make the depth computation based on another object’s transform. This way, the objects will be considered to be at the same point in space as their target and they’ll have the same depth order, even if they’re at different Y positions in the scene. In the bird house example, the bird house uses the tree’s world position for its depth computations. This solution works better for our game, because it allows artists to move the item freely while staying at the depth (and not have to deal with editing the “height” parameter). And mainly because all the gameplay takes place in the ground’s 2D plane anyway so all objects are guaranteed to have a root object that has the ground position. In your own game, it might be easier to just use the first option.
[ExecuteInEditMode]
[RequireComponent(typeof(Renderer))]
public class IsometricObject : MonoBehaviour
{
private const int IsometricRangePerYUnit = 100;
[Tooltip("Will use this object to compute z-order")]
public Transform Target;
[Tooltip("Use this to offset the object slightly in front or behind the Target object")]
public int TargetOffset = 0;
void Update()
{
if (Target == null)
Target = transform;
Renderer renderer = GetComponent();
renderer.sortingOrder = -(int)(Target.position.y * IsometricRangePerYUnit) + TargetOffset;
}
}

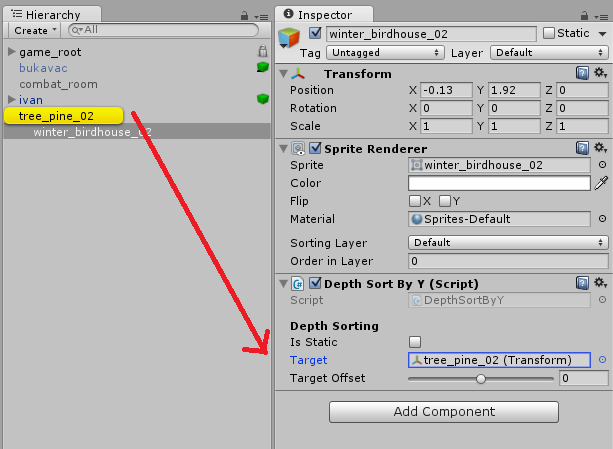

This is how this example is set up in Unity:
The birdhouse references the tree for its depth.
And this is how it behaves in practice:
Ground Projection
For certain visual elements and effect, we wanted them to look properly projected on the ground, but also not spend too much time on making art for them. The ‘isometric’ view of the game means that anything that is horizontally on the ground should look squashed vertically. For simple sprites, this is quite easy. Just draw them directly with the correct perspective and place them in the game.
Things get more complicated when you need something that should be able to rotate in any direction. Like something to show the direction the character is moving in, or some visual effect sweeping the ground towards your attacking direction. Especially if these are things that are animated, drawing them manually for all possible orientations is out of the question (or so the artists claim).
Our solution is: the artists draw and animate these effects as if viewed top-down, and the programmers take care of transforming them at runtime to look as if they were projected on the ground. Without any transformation, just taken from the artists and placed in the game rotating them to match the player’s direction they look like below.
We need to squash them vertically. For a sprite that doesn’t rotate, just scaling on theYdimension does the job. But for a rotating sprite this doesn’t work, and it’s even worse for animations. The first thing we tried was a custom shader that transformed the vertices in the local space to squash them vertically (naturally, we went with the most complex solution first), but this needed to break batching to work properly with all sprites and animations. Or I was just bad at writing that shader, maybe…
The final solution is absurdly simple. Just rotate the object around the X axis, and it works! However, we also wanted to:
apply the rotation automatically and consistently, and not have to remember or care about setting the X component of the rotation ourselves
be able to set theZcomponent of the rotation (to make the effect rotate towards any game world direction)
not have to visit all ‘ground projected’ effects when changing the amount of squashing
Basically, the game should not have to know that a rotation on X axis is happening. If an object has theProjectOnGroundbehavior attached, it should just draw properly without additional effort. So we do the math just before rendering, and restore the rotation to its normal value right after. This hides the rotation around the X axis from the rest of the code.
[ExecuteInEditMode]
public class ProjectOnGround : MonoBehaviour
{
private Quaternion savedRotation;
// called before rendering the object
void OnWillRenderObject()
{
savedRotation = transform.rotation;
var eulers = transform.rotation.eulerAngles;
transform.rotation = Quaternion.Euler(Constants.Isometric.PerspectiveAngle, eulers.y, eulers.z);
}
//called right after rendering the object
void OnRenderObject()
{
transform.rotation = savedRotation;
}
}
Simple and easy. Too bad I wasted time trying to write a shader for this. The result looks good and we can simple ‘project’ any object by just adding this behavior to it.
We found out that this problem was caused by big textures loaded at the same time.
After removing these big textures the game started up without any problems.
So for everyone that has the same problem.
Check your big textures and check when they are being loaded and try to load.
----
2. 동시에 2번의 File IO
-> 동시에 File IO 안되도록 수정
----
We found out that this problem was caused by using PlayerPrefs.Save() twice at the same time on two different functions, also we had used File.write() at that time. when we save and write files at a different time, this issue solved.
First thing to do was to switch to Unity beta 2018.1. There you have the UnityWebRequest.certificateHandler This allows to set up custom certificate validation. one last thing to do is to create an object extending CertificateHandler to manage Certificate validation. (Seeherein Unity beta documentation)
Here is the code :
MyMonoBehaviour :
IEnumerator GetRequest(string uri){
UnityWebRequest request = UnityWebRequest.Get(uri);
request.certificateHandler = new AcceptAllCertificatesSignedWithASpecificKeyPublicKey();
yield return request.SendWebRequest ();
if (request.isNetworkError)
{
Debug.Log("Something went wrong, and returned error: " + request.error);
}
else
{
// Show results as text
Debug.Log(request.downloadHandler.text);
}
}
Here's a toon/cel/anime shader I've been working on that I am redying up for release. It has been designed to be easy for artists to use but also to offer heavy customizability. I'm making this thread to gauge if there is interest in any particular features, or just general feedback.
The gist of the asset is:
Forward-rendered cel-shader with full support for realtime lights + shadows
Ramp texture support for custom styles or skin shading

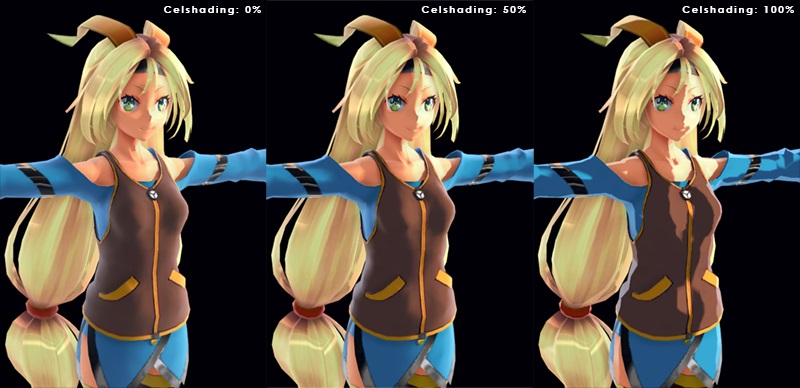

Smoothly control the cel-effect with a slider, ranging from "normal" smooth shading to 100% sharp edges
Supports a number of effects aimed towards making a material appear to be animated/drawn (specular, rim lighting, cubemap reflections)
Supports vertex colors, HSV adjustment with color masking, specular/gloss maps, normal maps, alpha testing, alpha blending (separate material), vertex-displaced outline (integrated in the same material or as a separate shader) as well as some custom ambient lighting
Also bundled with the asset is a number of stylized cubemaps useful for toon-like reflections (such as hair reflections or eye glints)
Runs well on mobile and plan is to test and make sure it is VR-compatible as well.
Anyway, here are some screenshots:
Currently I am interested in testing it out with more models (as well as gathering some screenshots and feedback). If you've got a smiple-styled model (preferably a character) and you'd like to give it a try, send me a PM with an image of it and I'll send you the asset so you can test it out!
